FG-200 DDS Function Signal Generator Frequency Counter 0.01Hz - 500KHz Signal Source Module Sine+Square+Sawtooth Form

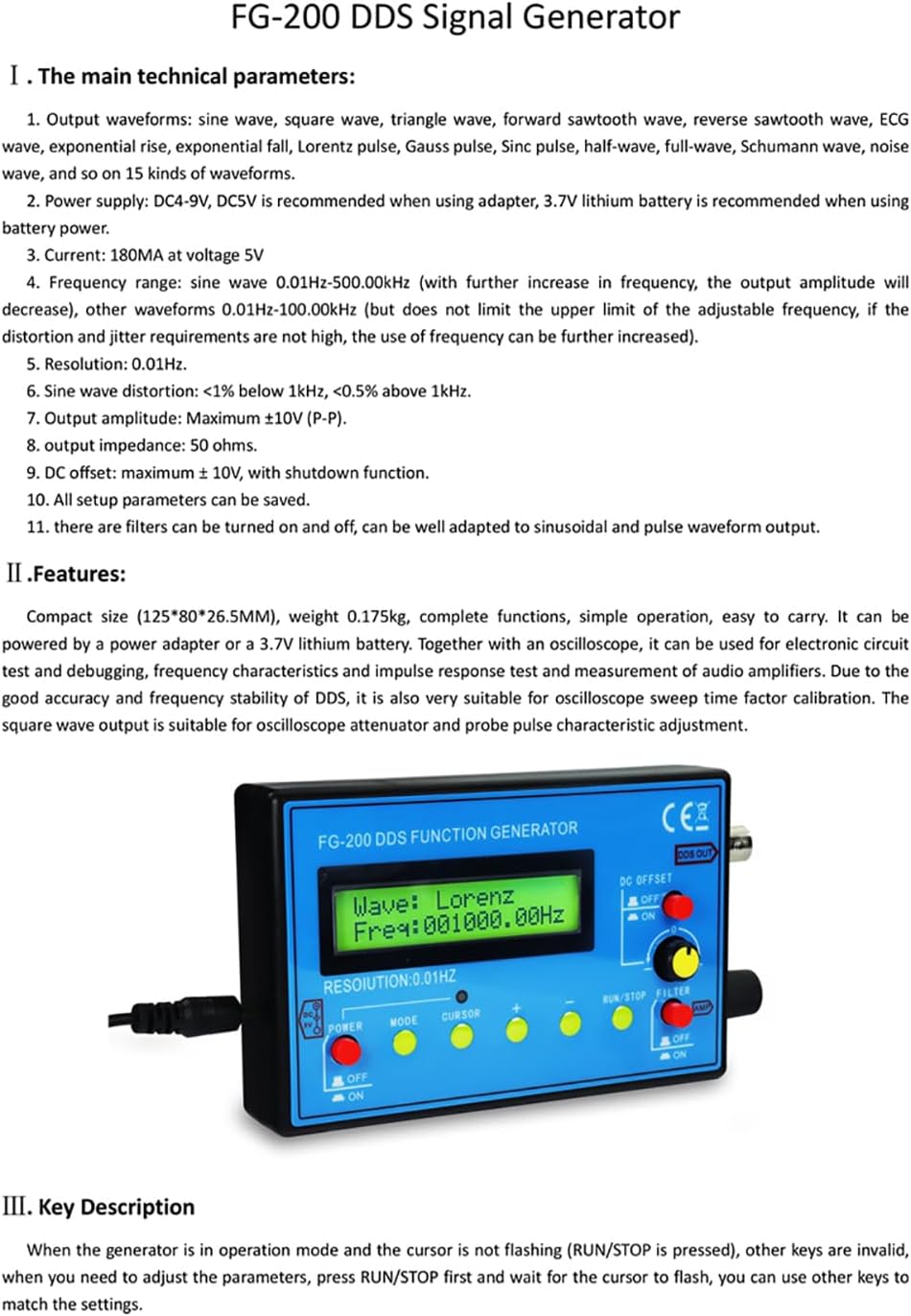

Specifications: Type: without Antenna / with Antenna (Optional) Material: ABS The main technical parameters: 1. Output forms: sine , square , triangle , forward sawtooth , reverse sawtooth , ECG , exponential rise, exponential fall, Lorentz pulse, Gauss pulse, Sinc pulse, half-, full-, Schumann , noise , and so on 15 kinds of forms. 2. Power ply: DC4-9V, DC5V is recommended when using adapter, 3.7V lithium battery is recommended when using battery power. 3. Current: 180MA at vole 5V 4. Frequency : sine 0.01Hz- 500.00kHz (with further increase in frequency, the output amplitude will decrease), other forms 0.01Hz-100.00kHz (but does not limit the upper limit of the adjustable frequency, if the distortion and jitter requirements are not high, the use of frequency can be further increased). 5. Resolution: 0.01Hz. 6. Sine distortion: <1% below 1kHz, <0.5% above 1kHz. 7. Output amplitude: Maximum ±10V (P-P). 8. output impedance: 50 ohms. 9. DC offset: maximum ±10V, with shutdown function. 10. All setup parameters can be saved. 11. there are filters can be turned on and off, can be well adapted to sinusoidal and pulse form output. Item Size: 140 * 80 * 26mm / 5.51 * 3.15 * 1.02in Item Weight: 144g / 5.07oz Package Weight: 245g / 8.64oz Package Size: 160 * 125 * 35mm / 6.29 * 4.92 * 1.37in Package List: 1 * Signal Generator 1 * USB Power Cable 1 * BNC Clip Cable 1 * User Manual (English)

• Compact size, complete functions, simple operation, easy to carry. It can be powered by a power adapter or a 3.7V lithium battery.
• Together with an oscilloscope, it can be used for electronic circuit test and debugging, frequency characteristics and impulse response test and measurement of audio amplifiers. Due to the good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope time factor calibration.
• The square output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment.
• Have a filter (can be opened and closed) to suit the output of sine and pulse .
• This functional signal generator can test many kinds of forms such as: sine , square , triangle , forward sawtooth , reverse sawtooth , etc. It is especially designed for those professional worker.
