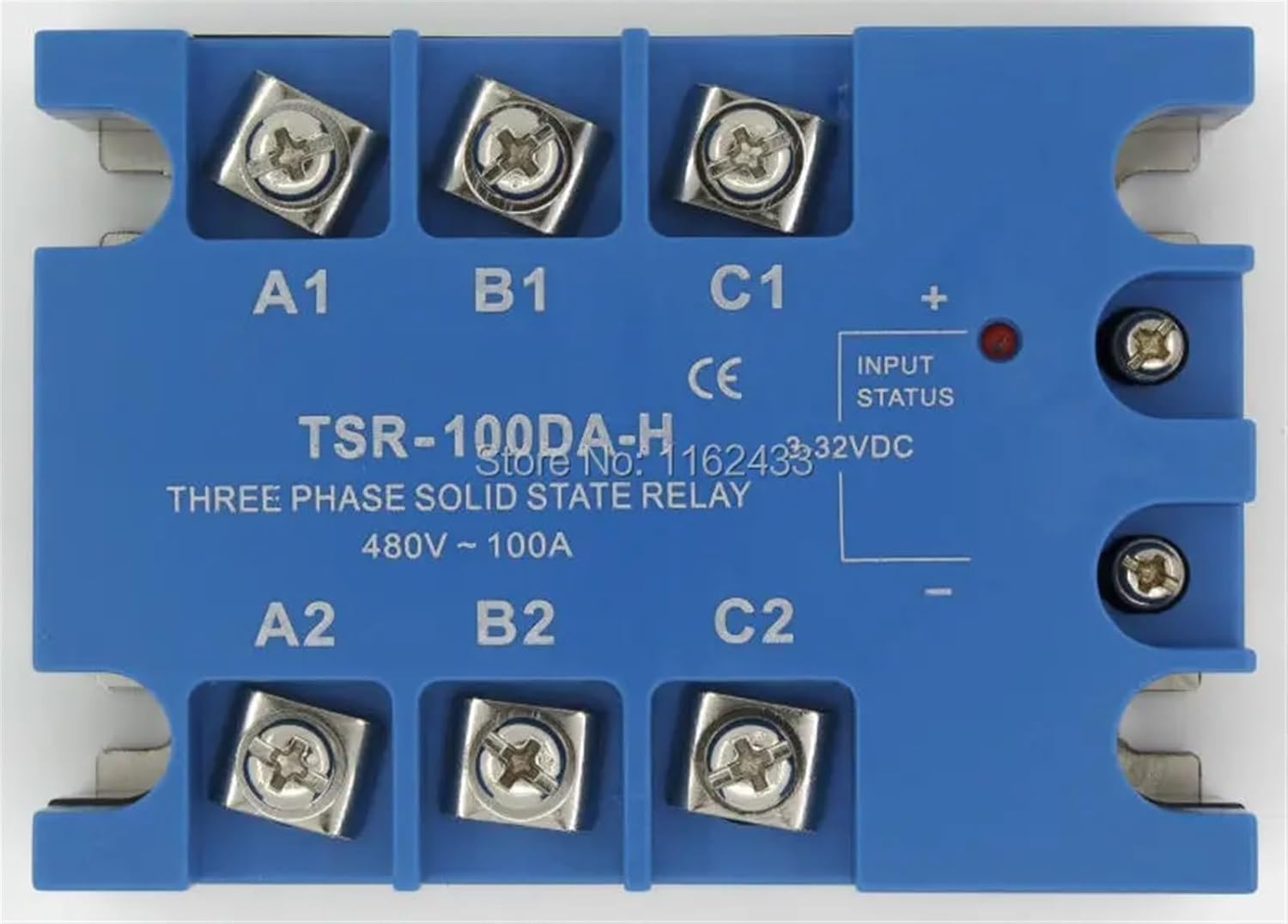

TSR-100DA -H Three Phase DC to AC 100A 90-480VAC Solid State Relay/SSR

relayRelayThree phase DC to AC solid state relayfinglaiModel number and parametersModel numberSame modelLoad currentLoad voltageRelated productTSR-10DAASH-3-DA481010A90-480VacOrderTSR-25DAASH-3-DA482525A90-480VacOrderTSR-40DAASH-3-DA484040A90-480VacOrderTSR-60DAASH-3-DA486060A90-480VacOrderTSR-80DAASH-3-DA488080A90-480VacOrderTSR-100DA-HASH-3-DA48100100A90-480VacVisiting...TSR-120DA-HASH-3-DA48120120A90-480VacOrderfinglaiSuitable maximum load powerLoad current (A)1025406080100120380V resistive load power (KW)1.94.87.611.415.21922.8380V inductive load power (KW)0.61.42.23.34.45.56.6finglaiGeneralModel numberTSR-DA seriesRated input control voltage3-32VdcRated input control current10-68mAPick-up voltage3VdcDrop-out voltage1VdcPick-up or drop-out time10ms maxControl typeZero crossing detectionInput-ON indicationLEDOn-state leakage current2mA maxOn-state voltage drop at Imax1.5VacMatched heat sink40A: FHSI04-105 60A: FHSH01-110 80A: FHSH01-150 150A: FHSY01-110Matched thermal greaseHZ-KS101Dielectric strength1500VAC 50/60Hz for 1 minuteInsulation resistance500 M min at 500 VDCExternal dimensions105x74x33mmTerminalsScrewOperational temperature-20 to 75°COperational humidity95% max no condensationAlias nameTSR-DA series three phase DC to AC SSRAdvantage1. The case is made of PC and PVC with good toughness smooth appearance; HD transparent protective cover can protect the product better for use in a variety of environments.2. Good heat dis
